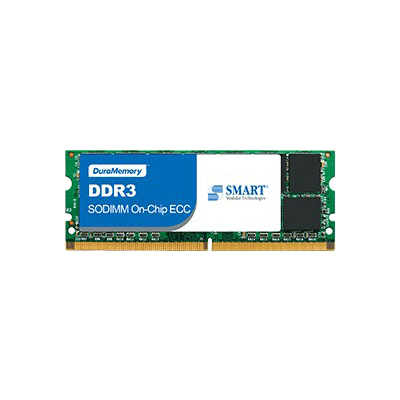

SPT102ESV351816GC - SMART Modular Technologies

SPT102ESV351816GC
DDR3 RAM Module | 8 GB | SODIMM On-Chip ECC
SMART's DuraMemory DDR3 SODIMM on-chip ECC module SPT102ESV351816GC comes with integrated ECC DRAM and does not require any additional DRAM or ECC software. SMART's SODIMMs with integrated ECC DRAM single bit automatically detect and correct errors. Additional DRAM, as well as additional ECC software are therefore not required.

Features:
- Underfill
- Conformal Coating
- Anti-Sulfur Resistor
Manufacturer:
Productgroup: DDR3 RAM ModulesDDR3 RAM Modules
Part Number: SPT102ESV351816GC
Additional Infos: Flyer Series ↗
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Series: DDR3
Form Factor: SODIMM On-Chip ECC
Capacity : 8 GB
Modul Config: 1Gb x64
Device Config: 512Mx8
Datarate : 1600 MT/s
Speed: PC3-12800
Operating Voltage : 1.35 V
Ranks: 2
CL: 11
Pins: 204
ECC: On-Chip ECC
Industrie: Yes
Medical: Yes
  Heigth: 30 mm
  Min. operating temperature: -40 °C
  Max. operating temperature: 85 °C

Hint: current revision of the supplier datasheet is applicable
