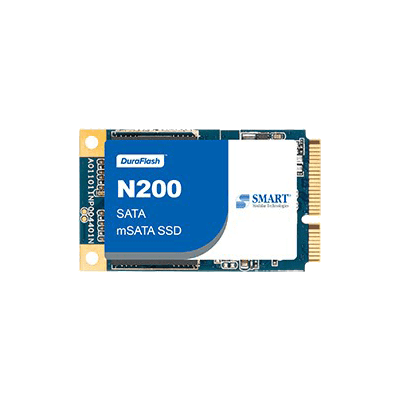

SVMST6032GNTIE1 - SMART Modular Technologies

SVMST6032GNTIE1
N200 | SATA 3 | mSATA 3 SSD | 3D TLC | 32GB
SMART's DuraFlash N200 mSATA SSD with 32GB capacity and TLC-3D NAND memory is cost-effective yet a highly reliable mass storage device in mSATA form factor. The N200 series is suitable for embedded applications that require lower drive capacity and utilize the drive for boot up code and OS code storage. Static wear leveling algorithms ensure consistently reliable operation over the entire operating life.

Features:
- Advanced Error Detection & Correction
- S.M.A.R.T.
- Write Protection
- Secure Erase
- Over-Provisioning
Manufacturer:
Productgroup: mSATA SSDsmSATA SSDs
Part Number: SVMST6032GNTIE1
Series: N200
Additional Infos: Flyer series N200
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Series: N200
Form Factor: mSATA (MO-300)
Memory Type: 3D TLC
Interface: SATA III 6Gbps
Capacity : 32 GB
Write Performance : 125 MB/s
Read Performance : 300 MB/s
Operating Voltage : 3.3 V
MTBF: 1500000
Shock Resistance: 1500G/0.5ms
Vibration Resistance: 80Hz ~ 2000Hz/20G
Industrie: Yes
Medical: Yes
Military: No
Power Loss Protection: No
  Length: 50.8 mm
  Width: 29.85 mm
  Heigth: 4 mm
  Min. operating temperature: -40 °C
  Max. operating temperature: 85 °C

Hint: current revision of the supplier datasheet is applicable
