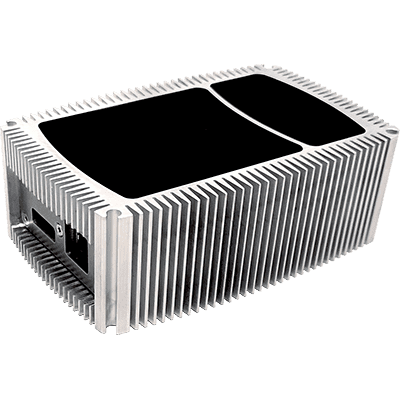

QVGA 3D Time-of-Flight Camera | 0,5-38 m
QVGA 3D Time-of-Flight CameraDistance: 0,5...38m @ 90% reflectivity, 100kLux Ambient light 0,5...96m @ 90% reflectivity, no Ambient light Resolution: 320 x 240 Pixel Viewing Angle: 31°x24° Framerate: up to 20fps Accuracy: +-4 cm (0.2 - 2m) +-2% (2m - max. distance) Ambient light tolerance: up to 100kLux Integrated Illumination 940nm Interface: Gigabit Ethernet (RJ45) Temperature Range: -20°C ... +60°C |
|
Manufacturer: | ESPROS Photonics Corporation | |
Productgroup: | TOF cameras | |
Part Number: | TOFcam-660-NF | |
Series: | TOFcam 660 | |
Datasheet: | Open datasheet | |
State: | 🟢 Active |
Note article Request article |
Max. Distance : | 9600 cm | ||
Resolution : | 320x240 Pixel | ||
Interface: | Ethernet TCP/IP | ||
Field of view: | 31°x24° | ||
Max. Frame rate : | 40 fps | ||
Length: | 140 mm | ||
Width: | 90 mm | ||
Heigth: | 50 mm | ||
Min. operating temperature: | -20 °C | ||
Max. operating temperature: | 60 °C |
|
Hint: current revision of the supplier datasheet is applicable
