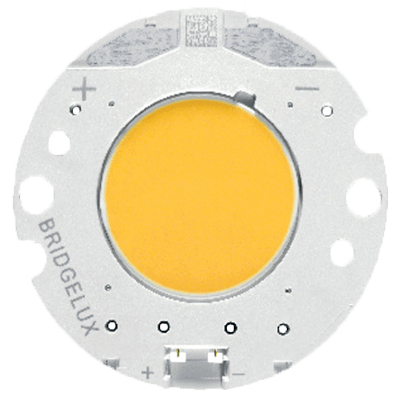

COB LED | LES Ø 18,5 mm | 3000 K | CRI >90
Type: V18CColor: Warm white Binning: 3 step Vf: 34,9 V Generation: 8 Datasheet: 437 |
|
Manufacturer: | Bridgelux | |
Productgroup: | COB LEDs | |
Part Number: | BXRE-25G40F0-C-83 | |
Series: | COB_V18 | |
Datasheet: | Open datasheet | |
State: | 🟢 Active |
Note article Request article |
LED-series: | COB_V10 | ||
Color: | Warm White | ||
CCT : | 3000 K | ||
CRI: | 90 | ||
Luminous intensity typ. : | 2137133 mcd | ||
Luminous efficiency typ. : | 183 lm/W | ||
Luminous flux typ. : | 6714 lm | ||
Vf typ. : | 34.9 V | ||
If : | 1050 mA | ||
If max. : | 2160 mA | ||
Viewing angle : | 120 ° | ||
Hi-Rel: | No | ||
Length: | 24 mm | ||
Width: | 24 mm | ||
Heigth: | 1.65 mm | ||
Min. operating temperature: | -40 °C | ||
Max. operating temperature: | 105 °C | ||
Chassis: | COB |
|
Hint: current revision of the supplier datasheet is applicable
