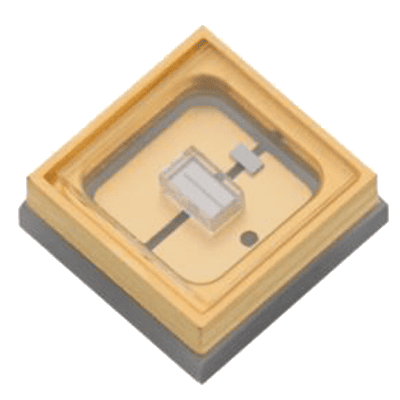

CUD72F1B - Seoul Viosys

CUD72F1B
UV-C LED | 275nm | 3535 | SMD
UV LED
Wavelength: 270-278nm
Forward voltage: typ. 5,6V
Radiant Flux: typ. 25mW@100mA
Housing: 3535 Flat, 3,35mm x 3,35mm
Beam angle: 120°
Manufacturer:
Productgroup: UV-LEDs (SMD)UV-LEDs (SMD)
Part Number: CUD72F1B
Series: CUD
Datasheet: PDF CUD72F1B | Seoul ViosysOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Type: SMD
Wave Length : 275 nm
UV Range: UV-C
Radiant Flux typ. : 25 mW
Spectrum Half Width : 11 nm
If : 100 mA
Forward Voltage : 5.6 V
View Angle : 120 °
Package Dimensions : 3,35 x 3,35 mm
  Length: 3.35 mm
  Width: 3.35 mm
  Heigth: 1.5 mm
  Min. operating temperature: -40 °C
  Max. operating temperature: 90 °C
  Chassis: 3535

Hint: current revision of the supplier datasheet is applicable
