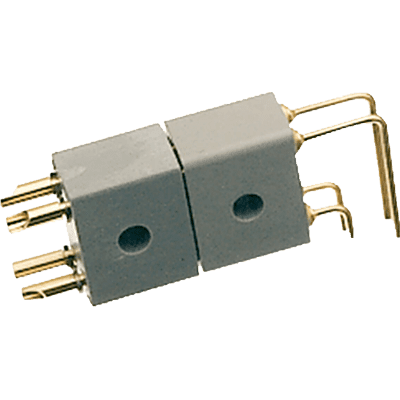

GFPL Serie - Positronic

GFPL Serie
Rectangular Connectors Slim Power
The GFPL series is part of the Slim Power low-profile building-block connector family. GFPL series connectors offer right angle solder termination option.
Manufacturer:
Productgroup: Rectangular connectorsRectangular connectors
Part Number: GFPL Serie
Series: Slim Power
Datasheet: PDF GFPL Serie | PositronicOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Series: Slim Power
Working Voltage : 300 V rms
Contact Current Rating : 7.5 A
Contact Retention : 44 N
Mating Cycles: 1000
Insulator Resistance : 5 GΩ
Performance Level: Industry | Military | Aero
Insulator Material: DAP
Proof Voltage : 2000 V rms
Flammability Rating UL 94V-0: Yes
Hi-Rel: Yes
Modular: No
Hermetic: No
Waterproof (IP67, IP68, ...): No
Contact Resistance (max) : 10 mΩ

Hint: current revision of the supplier datasheet is applicable
