OPI1290-080 - OPTEK Technology

Optocoupler, Logic-Output (Totem Pole), 33kV
OPI1290-080

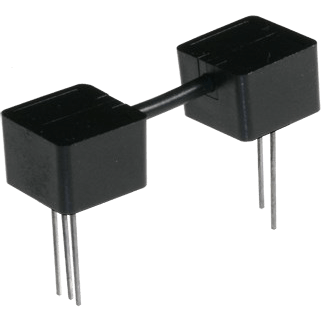

The OPI1290-080 consists of a IR LED with 890 nm peak wavelength and a Photologic® Totem-Pole output sensor, which are housed in separate opaque molded plastic housings and coupled by plastic fiber optic cable.

Features:
• High noise immunity
• Data Transfer through plastic fiber optic cable
• Isolation voltage 33 kV
Manufacturer: TT ElectronicsTT Electronics
Brand:
Productgroup: OptocouplersOptocouplers
Part Number: OPI1290-080
Series: OPI1290
Datasheet: PDF OPI1290-080 | OPTEK TechnologyOpen datasheet

directly to request


Technical data

Output Type Logic
Channels 1
PINs 5
Isolation Voltage 33000 Vrms
Input Current Type DC
Hi-Rel No
High Speed No
High Voltage Yes
Length: 92.7 mm
Width: 12.7 mm
Heigth: 8.89 mm
Min. operating temperature: -20° C
Max. operating temperature: 75° C
Chassis: Nonstandard

Hint: current revision of the supplier datasheet is applicable
