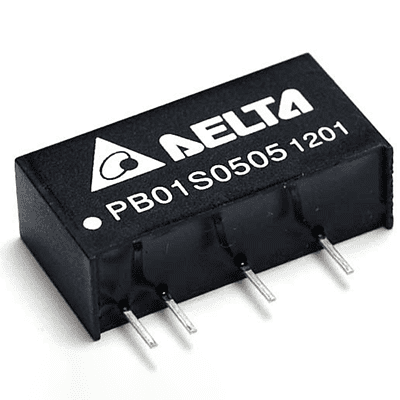

PB01S - Delta Electronics

PB01S
DC/DC Converter | 3,3/5/9/12/15 V | 1 W | isolated
Input voltage: 5V | 12V | 15V | 24V
Trim range: Yes
Efficiency: max. 80%
Fixed frequency: Yes
Isolation: max. 1,0kV

Variations:
Output voltage: 3,3V | 5V | 9V | 12V | 15V
Pin lengh: see datasheet
Manufacturer:
Productgroup: DC/DC ConvertersDC/DC Converters
Part Number: PB01S
Series: PB01S/D
Datasheet: PDF PB01S | Delta ElectronicsOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

Max. Power : 1 W
Input Voltage : 5 | 12 | 15 | 24 V
Output Voltage : 3,3 | 5 | 9 | 12 | 15 V
Adjustable Output Voltage: No
Isolation: Yes
Isolation : 1 kVDC
Encapsulated: Yes
Mounting: Print
  Length: 19.5 mm
  Width: 7.1 mm
  Heigth: 10.2 mm
  Min. operating temperature: -40 °C
  Max. operating temperature: 85 °C
  Chassis: SIP

Hint: current revision of the supplier datasheet is applicable
