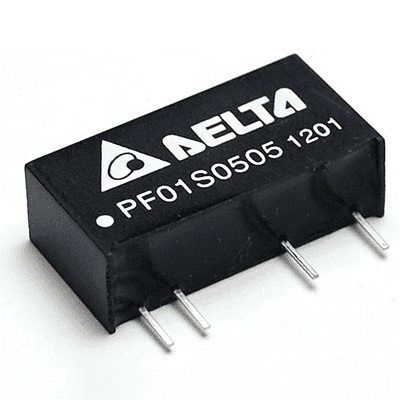

PF01S - Delta Electronics

Isol. DC/DC | encapsulated | SIP | max 1W
PF01S
Input voltage: 5V | 12V | 24V
Trim range: Yes
Efficiency: max. 88%
Fixed frequency: Yes
Isolation: max. 3,0kV

Variations:
Output voltage: 5V | 9V | 12V | 15V
Pin lengh: see datasheet
Manufacturer:
Productgroup: DC/DC ConvertersDC/DC Converters
Part Number: PF01S
Datasheet: PDF PF01S | Delta ElectronicsOpen datasheet

directly to request


Technical data

max. Power 1 W
Input Voltage 5 | 12 | 24 V
Output Voltage 5 | 9 | 12 | 15 V
Vout Adjustable No
Encapsulated Yes
Isolation 3 kVDC
Isolation Yes
Mounting Print
Medical approved No
Industry approved Yes
Railway approved No
ITE approved No
Length: 19.5 mm
Width: 7.1 mm
Heigth: 10.2 mm
Min. operating temperature: -40° C
Max. operating temperature: 85° C
Chassis: SIP

Hint: current revision of the supplier datasheet is applicable
