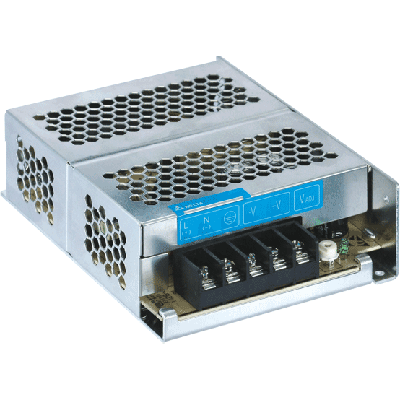

PMC-12V060W1NA - Delta Electronics

PMC-12V060W1NA
Housing Power Supply | 60 W | 12 V | 5 A
– Universal AC input voltage without power de-rating
– Full corrosion resistant Aluminium chassis
– NEC Class 2 power supply and Limited Power Source (LPS) approvals
– High MTBF > 700,000 hrs. as per Telcordia SR-332
– Wide operating temperature range from -20°C to 70°C
– Conformal Coating (Class I, Div 2 Hazardous Locations Ready)
Manufacturer:
Productgroup: Enclosed Power SuppliesEnclosed Power Supplies
Part Number: PMC-12V060W1NA
Series: PMC
Datasheet: PDF PMC-12V060W1NA | Delta ElectronicsOpen datasheet
State: This article has been discontinued by the manufacturer.
Note article Merkzettel Request article Anfrage


Technical data

Type: Panel Mount
Power : 60 W
Input Voltage : 85 - 264 V
Output Voltage : 12 V
Approvals: Industrial
  Length: 128 mm
  Width: 97 mm
  Heigth: 38 mm
  Min. operating temperature: -10 °C
  Max. operating temperature: 70 °C

Hint: current revision of the supplier datasheet is applicable
