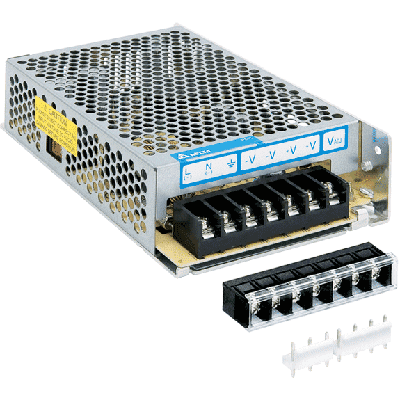

PMT-24V100W1AA - Delta Electronics

PMT-24V100W1AA
Housing Power Supply | 100 W | 24 V | 4,5 A
– Conforms to harmonic current IEC/EN 61000-3-2, Class A
– Selectable AC Switch (90-132Vac, 180-264Vac)
– High MTBF > 700,000 hrs. as per Telcordia SR-332
– Versatile configuration options (Enclosed, L Frame)
– Versatile connector options (Terminal Block, Front Face, Harness)
Manufacturer:
Productgroup: Enclosed Power SuppliesEnclosed Power Supplies
Part Number: PMT-24V100W1AA
Series: PMT
Datasheet: PDF PMT-24V100W1AA | Delta ElectronicsOpen datasheet
State: This article has been discontinued by the manufacturer.
Note article Merkzettel Request article Anfrage


Technical data

Type: Panel Mount
Power : 108 W
Input Voltage : 90 - 132 | 180 - 264 V
Output Voltage : 24 V
  Length: 158 mm
  Width: 97 mm
  Heigth: 38 mm
  Min. operating temperature: -10 °C
  Max. operating temperature: 70 °C

Hint: current revision of the supplier datasheet is applicable
