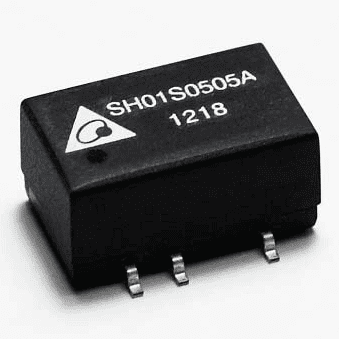

DC/DC Converter | 3,3/5/9/12/15 V | 1 W | isolated
Isolated DC/DC | 1W | SMD-Package - Efficiecny up to 80% - SMD Package with Industry Standard Pinout - Operating Temperature Range –40°C to +85°C - Moisture sensitivity level (MSL) 2 - Isolation Voltage 1500 VDC - High Accuracy of Pin Planarity |
|
Manufacturer: | Delta Electronics | |
Productgroup: | DC/DC Converters | |
Part Number: | SH01S | |
Datasheet: | Open datasheet | |
State: | 🟢 Active |
Note article Request article |
Max. Power : | 1 W | ||
Input Voltage : | 5 | 12 | 15 | 24 V | ||
Output Voltage : | 3,3 | 5 | 9 | 12 | 15 V | ||
Adjustable Output Voltage: | No | ||
Isolation: | Yes | ||
Isolation : | 1.5 kVDC | ||
Encapsulated: | Yes | ||
Approvals: | Medical | ||
Mounting: | |||
Length: | 6.7 mm | ||
Width: | 8 mm | ||
Heigth: | 13.7 mm | ||
Min. operating temperature: | -40 °C | ||
Max. operating temperature: | 85 °C | ||
Chassis: | SMD |
|
Hint: current revision of the supplier datasheet is applicable
