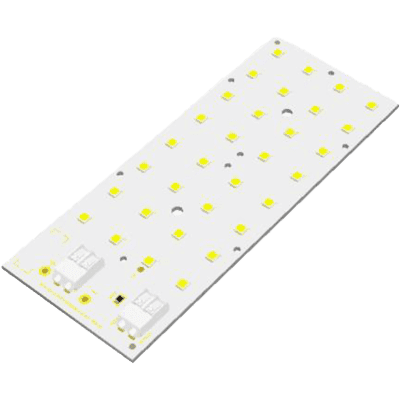

SMJD-2316032G-XXN1/3C - Seoul Semiconductor

SMJD-2316032G-XXN1/3C
LED Module | 121,4x49,5 mm | 5028K | 16 W | CRI 80
Binning: 3 step
LED placement: 4x8 3030C
Color: Cool White
Voltage: 22 VDC
ZHAGA
Manufacturer:
Productgroup: LED ModulesLED Modules
Part Number: SMJD-2316032G-XXN1/3C
Series: 3030C-Module
Datasheet: PDF SMJD-2316032G-XXN1/3C | Seoul SemiconductorOpen datasheet
State: 🟢 Active
Note article Merkzettel Request article Anfrage


Technical data

style: DC LED Module
No. of LEDs: 32
color: Cool White
CCT : 5028 K
luminous flux : 3010 lm
CRI: 80
supply voltage : 22.7 V
driving curent : 700 mA
driving mode: Constant Current
Zhaga: Yes
ZHAGA Book: 7
connection: SMD Terminal
  Length: 121.4 mm
  Width: 49.5 mm
  Heigth: 6.1 mm
  Min. operating temperature: -40 °C
  Max. operating temperature: 85 °C

Hint: current revision of the supplier datasheet is applicable
