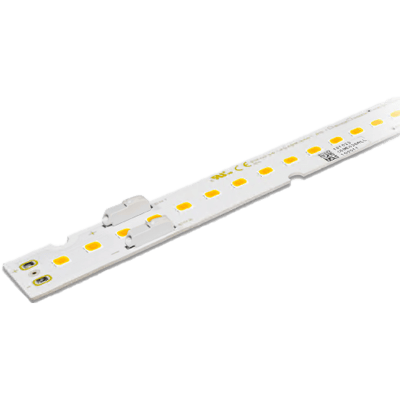

LED Module | 560x20 mm | 3985 K | 11 W | CRI 80
Binning: 3 stepLED placement: 1x60 5630D Color: Natural White Voltage: 33 VDC ZHAGA |
|
Manufacturer: | Seoul Semiconductor | |
Productgroup: | LED Modules | |
Part Number: | SMJD-3611060B-XXN1/3E | |
Series: | 5630-Module | |
Datasheet: | Open datasheet | |
State: | 🟢 Active |
Note article Request article |
style: | Linear HE Module | ||
No. of LEDs: | 60 | ||
color: | Natural White | ||
CCT : | 3985 K | ||
luminous flux : | 2210 lm | ||
CRI: | 80 | ||
supply voltage : | 33.6 V | ||
driving curent : | 325 mA | ||
driving mode: | Constant Current | ||
Zhaga: | Yes | ||
ZHAGA Book: | 7 | ||
connection: | SMD Terminal | ||
Length: | 560 mm | ||
Width: | 20 mm | ||
Heigth: | 1.6 mm | ||
Min. operating temperature: | -30 °C | ||
Max. operating temperature: | 85 °C |
|
Hint: current revision of the supplier datasheet is applicable
