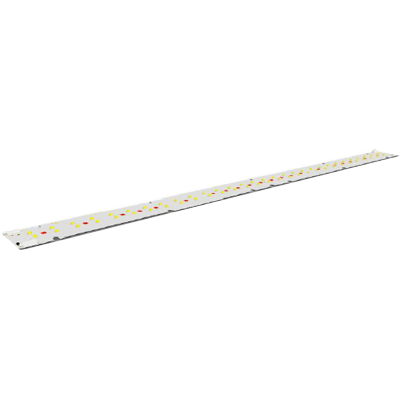

LED Module | 561x37 mm | 5000 K | 51 W | CRI 80
LED placement: Z5M3 5000K CRI80 (60pcs) & SZDR5A0D (21pcs)Color: Cool White Voltage: 42 VDC PPF 137umol/s PPE 2,69umol/J Typ. Application: Horticulture ZHAGA |
|
Manufacturer: | Seoul Semiconductor | |
Productgroup: | LED Modules | |
Part Number: | SMJD-4250081H-XXN1 | |
Series: | Horti-Module | |
Datasheet: | Open datasheet | |
State: | 🟢 Active |
Note article Request article |
style: | DC LED Module | ||
No. of LEDs: | 81 | ||
color: | Cool White | ||
CCT : | 5000 K | ||
Wavelength : | 660 nm | ||
CRI: | 80 | ||
supply voltage : | 42.5 V | ||
driving curent : | 1200 mA | ||
driving mode: | Constant Current | ||
Zhaga: | Yes | ||
ZHAGA Book: | 7 | ||
connection: | SMD Terminal | ||
Length: | 561 mm | ||
Width: | 37 mm | ||
Heigth: | 5.5 mm | ||
Min. operating temperature: | -30 °C | ||
Max. operating temperature: | 105 °C |
|
Hint: current revision of the supplier datasheet is applicable
